mīkini ʻike maka

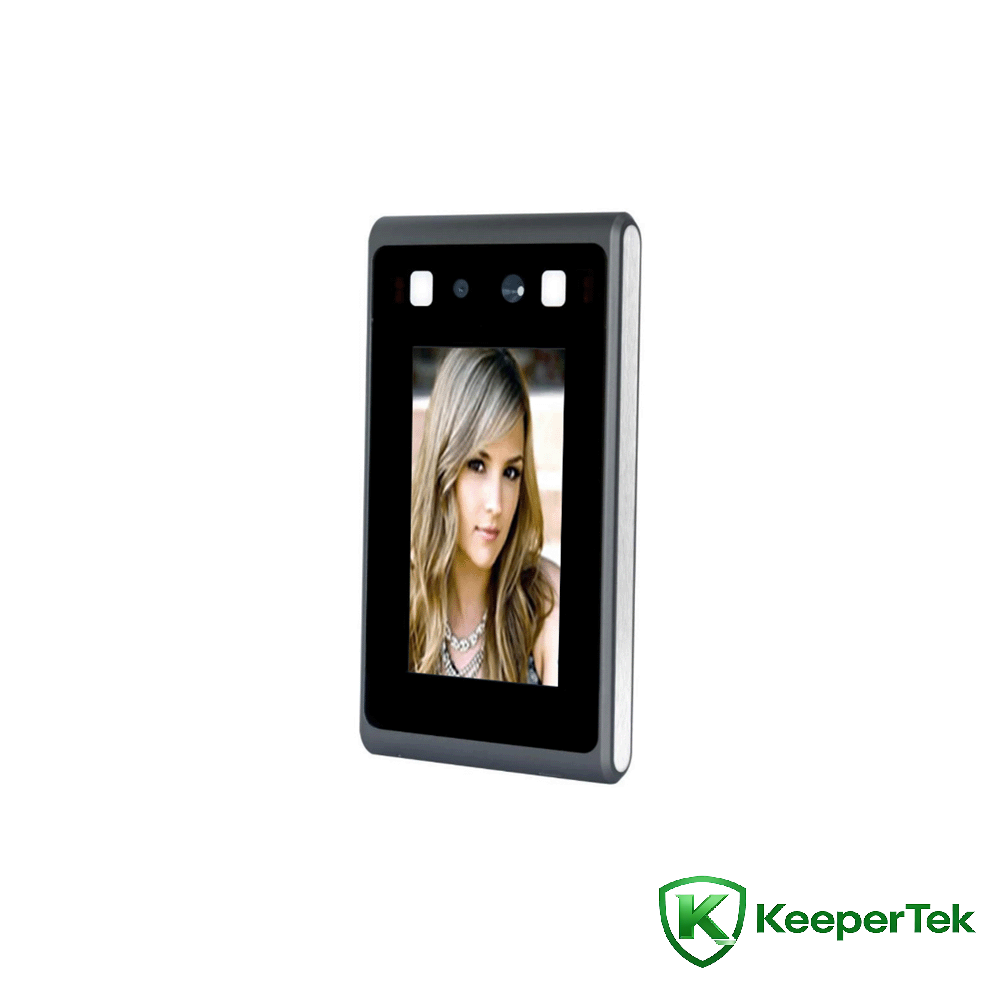

4.3iniha kanaka Maka hoʻomaopopo palaki Kāleka i hoʻohui ʻia mīkini KT- FR002

Nā palena ʻenehana

Kaʻina hana: Dual-Core ARM Cortex-A7, @1.0GHz

Pūnaehana hana: Linux operating system

Waihona: Kākoʻo i ka mālama ʻana i ke kāleka TF (koho)

Kamera: Binocular, 2.1 miliona mau pika pono, 1920*1080

Mea hana kiʻi: 1/2.8" Progressive Scan CMOS

Lens: 4.5mm

Kāleka swiping module: koho, 13.56MHz, helu serial kāleka ID, Mifare, NFC

Kākoʻo Wifi: IEEE 802.11b/g/n maʻamau, kākoʻo i ka band frequency 2.4GHz, pae wikiwiki 1Mbps-150Mbps

Pākuʻi paʻi: kākoʻo, capacitive multi-touch pale

Mea haʻiʻōlelo: maʻamau, hiki ke hoʻopilikino ʻia ka ʻike leo leo

Kiʻekiʻe ʻike: 1.2 ~ 2.2 mika, hiki ke hoʻololi ʻia ke kihi

Ka mamao ʻike: 0.3 ~ 1.5 mika

ʻO ke alo: 30 degere hema a ʻākau, 30 degere i luna a lalo

Ka manawa ʻike: emi iho ma mua o 0.5 kekona

Hiki ke mālama: 60,000 mau moʻolelo snapshot

Hiki ke alo: 20,000

Mana komo: DC12V/2A

Pākuʻi pūnaewele: 1 RJ45 10M/100M awa Ethernet adaptive

ʻO Wiegand interface: 1 Wiegand interface interface, 1 Wiegand interface input

Hoʻopili alaala: 1 hoʻokomo ʻana i ke ahi, 1 puka hoʻāla

Pākuʻi ʻike ʻike puka: 1 hoʻokomo hoʻokomo ʻike ʻike puka

ʻO ka wehe ʻana o ka puka puka: 1 hoʻokomo ʻana o ka puka puka

Puka puka puka: 1 puka puka puka puka

Paʻa paʻa puka: 1 puka puka puka puka

Pilina kamaʻilio: 1 RS485 kaʻina kamaʻilio

Kākoʻo: Kākoʻo pahupaʻi kiʻi, nā aniani aniani āpau, ke kukui ʻike ʻia a kokoke i ka infrared, kākoʻo i ka ʻike kino ola.

Nā pika kūpono: 2.1 miliona mau pika kūpono, 1920*1080

ʻO ka mālamalama liʻiliʻi: kala 0.01Lux @F1.2 (ICR); ʻeleʻele a keʻokeʻo 0.001Lux @F1.2 (ICR)

Lakiō hōʻailona-a-leo: ≥50db (AGC OFF)

Hoʻoholo pale: 480*272

Ka wela hana: -20 ℃ - +55℃

ʻO ka haʻahaʻa hana: 0 ~ 90% haʻahaʻa pili, ʻaʻohe condensation

Mana lako: 10W(MAX)

Ka pae paʻakai: Rp6 a i ʻole

Antistatic: pili ± 4KV, ea ± 8KV

Ka mana lako: DC12V/2A

Ka pae pale: IP42

Nā kikoʻī o ka pale: 4.3-inch capacitive multi-touch pale

Nui o ka lako: 160 (lōʻihi) * 88 (ākea) * 17 (mānoanoa) mm

Nā hiʻohiʻona

Kākoʻo i ka ʻike kino ola binocular

Kākoʻo i ka nānā ʻana i ke alo a me ka hōʻike ʻana i nā poʻe e neʻe ana i nā kaiapuni backlight ikaika

ʻO ka algorithm ʻike maka kū hoʻokahi, ʻike pololei i nā maka, ʻoi aku ka manawa o ka ʻike maka ma mua o 0.5s

PPU hale i kūkulu ʻia

Ke hoʻohana nei i ka ʻōnaehana hana LINUX, paʻa ka ʻōnaehana

ʻO ka manawa holo ma waena o nā hemahema MTBF> 50000h

Kākoʻo a hiki i 20,000+ mau hale waihona puke hoʻohālikelike a me 60,000 mau moʻolelo ʻike.

Hana wela: -20 ℃-55℃

ʻO loko IP42 wai a me ka lepo lepo

Kākoʻo i ka hoʻāla kaua anti-tamper

Kākoʻo i ka leo hoʻokomo microphone a me ka leo hoʻopuka leo

Nā kikowaena lako waiwai waiwai (I/O, WG26, WG34, RJ45, ʻike puka, bele puka, wehe ʻia ka puka, alarm, RS485)

4.3-inihi capacitive multi-touch pale, ʻaʻohe kiʻi smear a lohi paha
