mīkini ʻike maka

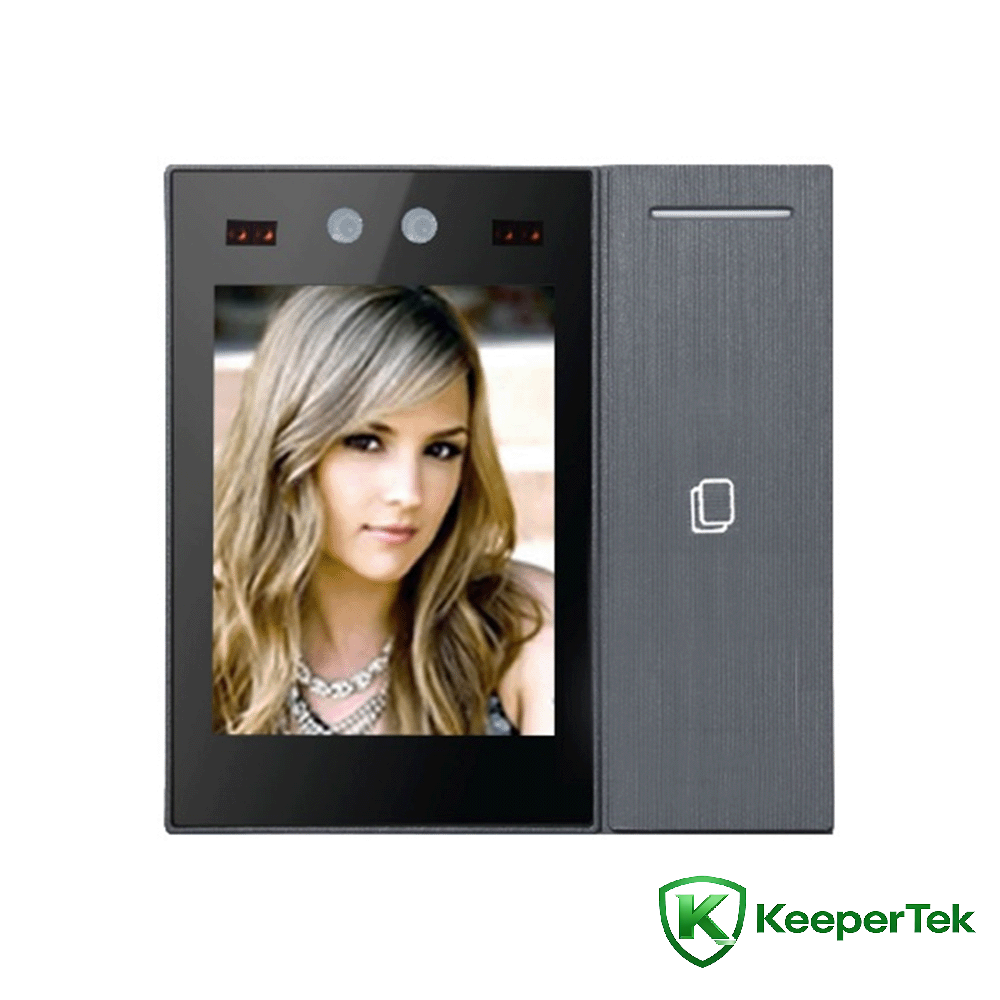

2.8Kāleka swipe maka hoʻokahi ʻīniha mīkini KT- FR001

Nā palena ʻenehana

Kaʻina hana: ARM hana kiʻekiʻe

Pūnaehana hana: Linux operating system

Kāleka swiping module: 13.56MHz frequency band card recognition, kākoʻo ISO/IEC 14443 TypeA, kākoʻo i ka 125KHz ID kāleka hana koho.

Module WiFi: 2.4GHz/5GHz WiFi SoC chip, hoʻohui pū ʻia ʻo IEEE 802.11a/b/g/n baseband a me RF kaapuni, ka nui o nā loulou iho o 72.2Mbps

Ethernet: 100Mbps Ethernet awa

Pale: 2.8-ʻīniha LCD pale

Hoʻopā: Capacitive pā

Ka mamao ʻike: 0.3 ~ 1.5 mika

ʻO ke alo: 30 degere hema a ʻākau, 30 degere i luna a lalo

Ka manawa ʻike: emi iho ma mua o 0.5 kekona

Hiki ke alo: 2000

Hiki ke hoʻopaʻa: 50000

Mana komo: DC12V/1A

Pānaehana pūnaewele: 1 100M Ethernet awa

Wiegand interface: 1 Wiegand pukana

Hoʻokomo ʻike ʻike puka: 1 hoʻokomo sensor puka

ʻO ka wehe ʻana o ka puka puka: 1 puka puka komo

Hoʻopuka hoʻokuʻu: 1 hoʻopuka relay

Pākuʻi USB: 1 pānaʻi USB2.0 (type-C)

Kāmeʻa: Kākoʻo ke kiʻi kiʻi binocular, ke kukui ʻike a me ka infrared kokoke, kākoʻo i ka ʻike kino ola

Nā pika kūpono: 1 miliona mau pika kūpono

Lakiō hōʻailona-a-leo: ≥50db (AGC OFF)

ʻO ka laulā ākea ākea: 100db, ISP algorithm ka ʻike hapa o ka maka

Hana wela: -10 ℃ a +50℃

ʻO ka haʻahaʻa hana: 10% ~ 90% haʻahaʻa pili, ʻaʻohe condensation

Mana lako: 10W (MAX)

Ka pae pale: IP42

Ka lako mana: DC12V/1A

Nui huahana: 86*86*17 (mm)

Nā hiʻohiʻona

PPU hale i kūkulu ʻia

·Kākoʻo i ka ʻike kino ola binocular

·Hana wela: -10℃- +50℃

·Ke hoʻohana nei i ka ʻōnaehana hana LINUX, paʻa ka ʻōnaehana

·ʻO ka manawa holo ma waena o nā hemahema MTBF> 50000h

·Kākoʻo i ka launa pūnaewele uea a me nā hana kamaʻilio WiFi

·Kākoʻo ka hāmeʻa i ka hoʻopaʻa ʻana i ka mana hiki ke akamai a me ke kahua hoʻokele hele ma ka paʻamau.

·Loaʻa i ka mea hoʻokipa kahi module swiping kāleka i kūkulu ʻia e kākoʻo i ka hoʻonui ʻana i nā hana swiping kāleka ID.

·Ua kūkulu ʻia ka mea hana i nā kukui hōʻailona ʻekolu kala e hoʻomaka ma muli o nā hopena hōʻoia.

·2.8-ʻīniha capacitive touch screen, ʻaʻohe kiʻi smear a lohi paha

·Kākoʻo ka hāmeʻa i ka pale hoʻopā mua a me ka hoʻopaʻa inoa kūloko i ka hoʻokele backend, nīnau, a me ka hoʻonohonoho ʻana o ka hāmeʻa.

·ʻO ka algorithm ʻike maka kū hoʻokahi, ʻike pololei i nā maka, ʻoi aku ka manawa o ka ʻike maka ma mua o 0.5s

·ʻO ke kino o ka mīkini paʻa a nani, kūpono loa no nā hiʻohiʻona noi komo a puka i waho o nā keʻena a me nā lumi kūkā liʻiliʻi.

·ʻO nā mea hoʻohana waiwai waiwai (USB2.0, relay, puka wehe puka, puka sensor puka, Wiegand output, etc.)
