mīkini ʻike maka

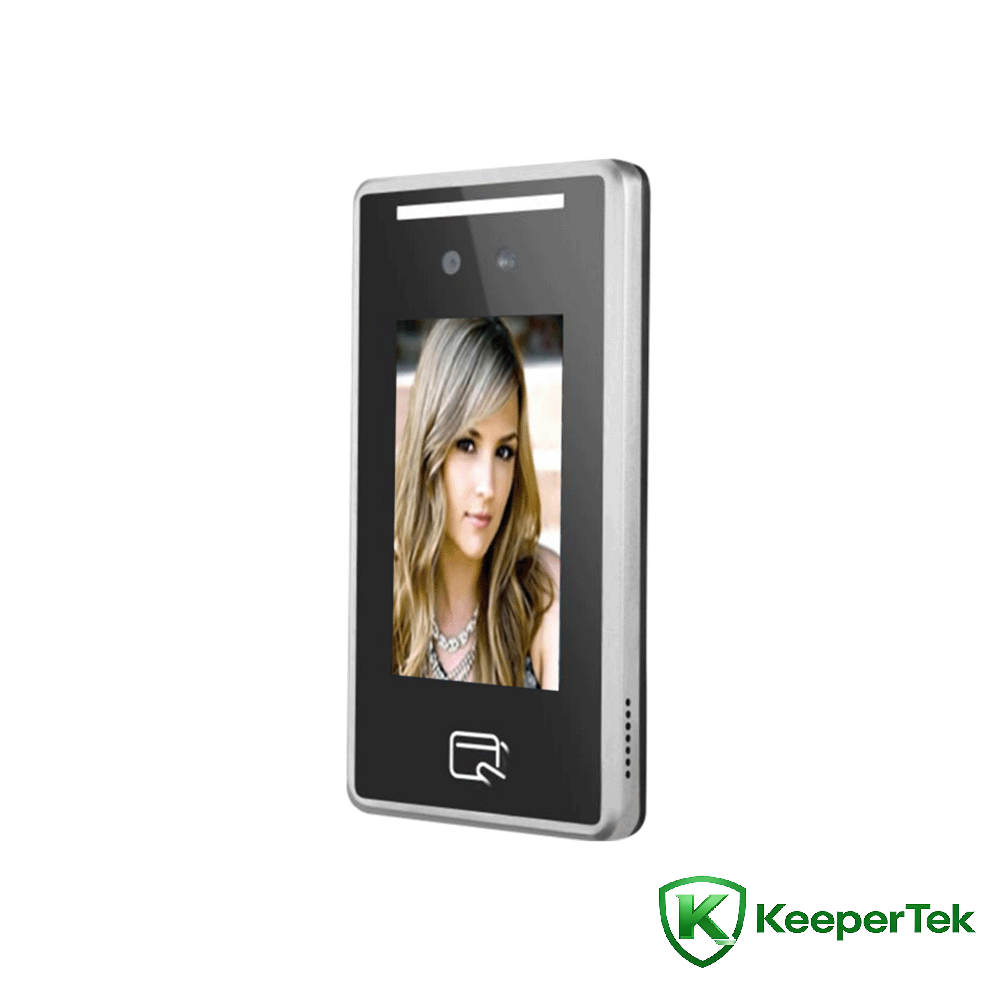

4.3iniha kanaka Maka hoʻomaopopo palaki Kāleka i hoʻohui ʻia mīkini KT- FR003

Nā palena ʻenehana

Kaʻina hana: Dual-Core ARM Cortex-A7, @1.0GHz

Waihona: RAM: 256MB ROM: 8GB

Pūnaehana hana: Linux operating system

Lens: 4.32mm ka lōʻihi kiko

Kāleka swiping module: 13.56MHz kiʻekiʻe-frequency swiping module, kākoʻo ISO/IEC 14443 TypeA, kākoʻo i ka heluhelu ʻana i nā kāleka IC

Ethernet: 100M Ethernet awa, hoʻokō me IEEE802.3/802.3u maʻamau, kākoʻo IPV4 a me IPV6 protocols

Kākoʻo Wifi: 2.4GHz kamaʻilio WiFi hoʻokahi-frequency, kākoʻo i ka protocol 802.11 b/g, ka helu kiʻekiʻe 54Mbps

Module Bluetooth: BT 4.2 Ke ala hoʻololi: DPSK, DQPSK, GFSK Laki hoʻouna: 1Mbps~3Mbps

Pale: 4.3 iniha IPS LCD pale

Hoʻopā: Capacitive pā

ʻŌlelo: hiki ke hoʻololi i ka leo leo, mana 1W

Ka mamao ʻike: 0.3 ~ 1.5 mika

ʻO ke alo: 30 degere hema a ʻākau, 30 degere i luna a lalo

Ka manawa ʻike: emi iho ma mua o 0.5 kekona

Hiki ke alo: 1000

Hiki ke hoʻopaʻa: 70,000 mau moʻolelo

Mana komo: DC12V/2A

Pānaehana pūnaewele: 1 100M Ethernet awa

Wiegand interface: 1 Wiegand pukana

Pākuʻi hoʻāla: 1 hoʻokomo ʻana i ke ala ala

Hoʻokomo ʻike ʻike puka: 1 hoʻokomo sensor puka

ʻO ka wehe ʻana o ka puka puka: 1 puka puka komo

Pilina kamaʻilio: 1 RS485 kaʻina kamaʻilio

Pākuʻi USB: 1 USB2.0 Type A interface

Kāmeʻa: Kākoʻo ke kiʻi kiʻi binocular, ke kukui ʻike a me ka infrared kokoke, kākoʻo i ka ʻike kino ola

Nā pika kūpono: 2.1 miliona mau pika kūpono

ʻO ka mālamalama liʻiliʻi: kala 0.01Lux @F1.2 (ICR); ʻeleʻele a keʻokeʻo 0.001Lux @F1.2 (ICR)

Lakiō hōʻailona-a-leo: ≥50db (AGC OFF)

ʻO ka laulā ākea ākea: 100db, ISP algorithm ka ʻike hapa o ka maka

Hana wela: -10 ℃ a +50℃

ʻO ka haʻahaʻa hana: 10% ~ 90% haʻahaʻa pili, ʻaʻohe condensation

Mana lako: 10W (MAX)

ESD: pili ± 4KV, ea ± 6KV

Ka pae pale: IP42

Ka lako mana: DC12V/2A

Nui huahana: 173.5*90.0*24.0 (mm)

Nā hiʻohiʻona

Kākoʻo i ka ʻike kino ola binocular

·Kākoʻo i ka nānā ʻana i ke alo a me ka hōʻike ʻana i nā poʻe e neʻe ana i nā kaiapuni backlight ikaika

·ʻO ka algorithm ʻike maka kū hoʻokahi, ʻike pololei i nā maka, ʻoi aku ka manawa o ka ʻike maka ma mua o 0.5s

·PPU hale i kūkulu ʻia

·Ke hoʻohana nei i ka ʻōnaehana hana LINUX, paʻa ka ʻōnaehana

·ʻO ka manawa holo ma waena o nā hemahema MTBF> 50000h

·Hana wela: -10℃- +50℃

·Kākoʻo i ka hoʻonohonoho ʻana i nā mea hana mua, ka hoʻopaʻa inoa o nā limahana, ka nīnau ʻike a me nā hana ʻē aʻe

·Nā kikowaena lako waiwai waiwai (USB2.0, hoʻokomo sensor puka, hoʻokomo puka puka, hoʻokomo alarm, Wiegand output, etc.)

·4.3-ʻīniha capacitive touch screen, ʻaʻohe kiʻi smear a lohi paha
