mīkini ʻike maka

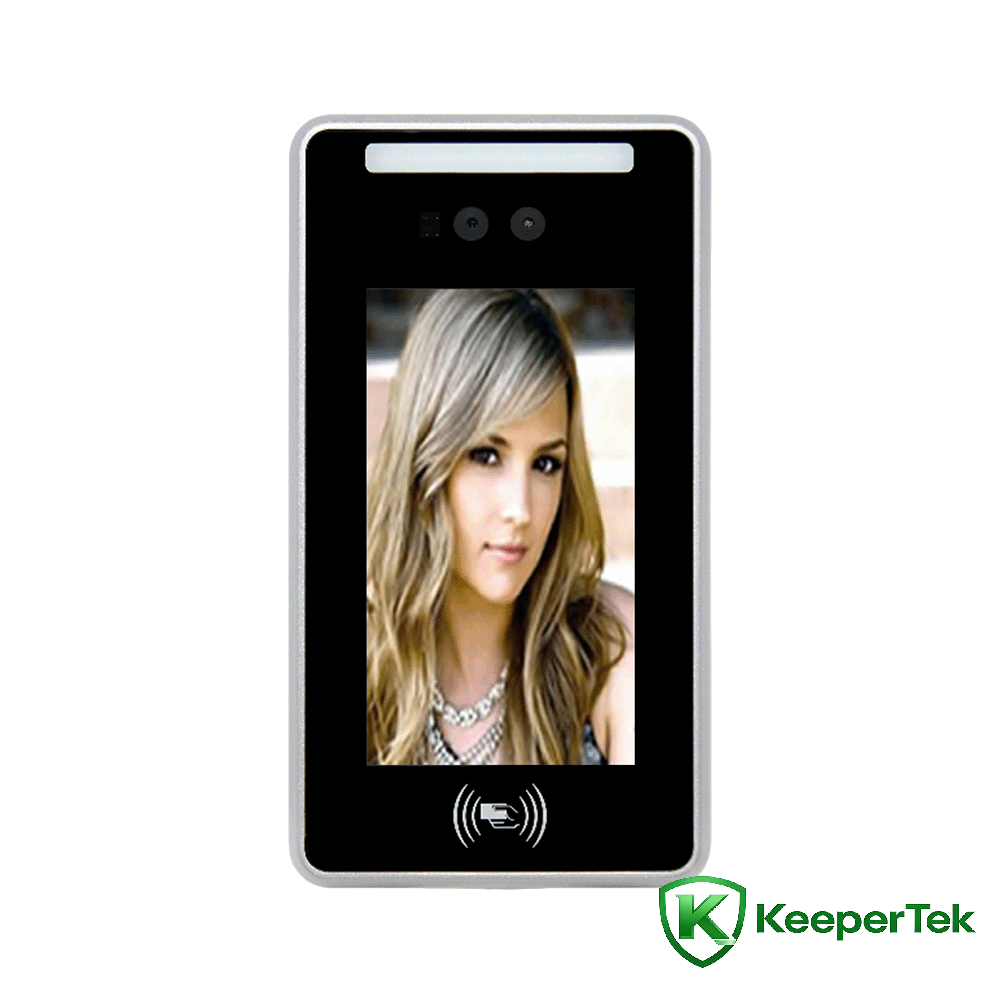

7iniha kanaka Kāleka ʻike maka e hili ana i nā mīkini āpau KT-FR007

Nā palena ʻenehana

Kaʻina hana: Dual-Core ARM Cortex-A7, @1.0GHz

Pūnaehana hana: Linux operating system

Waihona: 8GB EMMC

Kamera: Binocular, 2.1 miliona mau pika pono, 1920*1080

Mea hana kiʻi: 1/2.8" Progressive Scan CMOS

Leni: 6mm

Kāleka swiping module: 13.56MHz, kākoʻo iā Mifare S50, nā kāleka S70, nā kāleka ultralinght, nā kāleka NTAG, DESFire D21, D41, D81, nā kāleka CPU pili ʻole.

Kākoʻo WIFI: IEEE 802.11b/g/n maʻamau, kākoʻo i ka band frequency 2.4GHz, pae wikiwiki 1Mbps-150Mbps

Module Bluetooth: 8DPSK, π/4DQPSK, GFSK, ka wikiwiki o 1Mbps-2, 3Mbps

Mea haʻiʻōlelo: maʻamau, hiki ke hoʻopilikino ʻia ka ʻike leo leo

Kiʻekiʻe ʻike: 1.2 ~ 2.2 mika, hiki ke hoʻololi ʻia ke kihi

Ka mamao ʻike: 0.5 ~ 1.5 mika, hoʻololi e pili ana i ka lens

ʻO ke alo: 30 degere hema a ʻākau, 30 degere i luna a lalo

Ka manawa ʻike: emi iho ma mua o 0.5 kekona

Hiki ke mālama: 60,000 mau moʻolelo snapshot

Hiki ke alo: 20,000

Nā ʻano kāleka hiki ke swipe: 13.56MHz, helu serial kāleka ID, Mifare, NFC (koho i kūkulu ʻia i loko o ka heluhelu kāleka ID)

Ke hoʻololi i ka hoʻopuka: 1 hoʻololi i ka puka, hiki ke hoʻololi ʻia nā awa GPIO ʻē aʻe

ʻO ke kelepona USB: 1 ke kelepona USB ma ke ʻano he polokalamu

Pākuʻi pūnaewele: 1 RJ45 10M/100M awa Ethernet adaptive, awa pūnaewele Gigabit hiki ke hana.

ʻO Wiegand interface: 1 Wiegand interface interface, 1 Wiegand interface input

Hoʻopili kamaʻilio: 1 RS485 interface

Kāmeʻa: Kākoʻo ka pahu kiʻi binocular, ka mālamalama ʻike a kokoke i ka infrared, kākoʻo i ka ʻike kino ola

Nā pika kūpono: 2.1 miliona mau pika kūpono, 1920*1080

ʻO ka mālamalama liʻiliʻi: kala 0.01Lux @F1.2 (ICR); ʻeleʻele a keʻokeʻo 0.001Lux @F1.2 (ICR)

Lakiō hōʻailona-a-leo: ≥50db (AGC OFF)

Ka wela hana: -30 ℃ - +60℃

ʻO ka haʻahaʻa hana: 0 ~ 90% haʻahaʻa pili, ʻaʻohe condensation

Mana lako: 10W (MAX)

Ka pae paʻakai: Rp6 a i ʻole

Antistatic: pili ± 6KV, ea ± 8KV

Ka lako mana: DC12V/2A

Ka pae kūʻē i ka haunaele: IK06

Palena pae: IP66

Nā ʻōkuhi pale: 7-ʻīniha kiʻekiʻe-definition IPS pale

Nui o ka lako: 252 (lōʻihi) * 136 (ākea) * 26 (mānoanoa) mm

Nā hiʻohiʻona

Kākoʻo i ka ʻike kino ola binocular

Kākoʻo i ka nānā ʻana i ke alo a me ka hōʻike ʻana i nā poʻe e neʻe ana i nā kaiapuni backlight ikaika

ʻO ka algorithm ʻike maka kū hoʻokahi, ʻike pololei i nā maka, ʻoi aku ka manawa o ka ʻike maka ma mua o 0.5s

PPU hale i kūkulu ʻia

Ke hoʻohana nei i ka ʻōnaehana hana LINUX, paʻa ka ʻōnaehana

ʻO ka manawa holo ma waena o nā hemahema MTBF> 50000h

Kākoʻo a hiki i 20,000+ mau hale waihona puke hoʻohālikelike a me 60,000 mau moʻolelo ʻike.

Nā protocol interface waiwai, kākoʻo i ka TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocols ma lalo o Windows/Linux a me nā paepae ʻē aʻe.

Hana wela: -30 ℃-60℃

IP66 wai a me ka lepo

Hoʻokipa i loko o ka IC kāleka swiping module

Nā kikowaena lako waiwai waiwai (I/O, WG26, WG34, RJ45, USB, RS485)

7-inihi IPS piha-nānā HD hōʻike, ʻaʻohe smear a lohi paha i nā kiʻi
